Original: $1,042.33
-65%$1,042.33
$364.82The Story
The sleek complete Misirlou Shingle Complete Bathroom Suite makes the most of your bathroom with our stylish and practical modern bathroom suite. Featuring a modern full pedestal basin, close coupled toilet, paired with stylish chrome taps and d shape bath. Each item complements the other as they follow the same style throughout, featuring minimalist edges and smooth lines.
Technical Specification
Bath
- Double ended bath including panel
- Lucite Acrylic for lightweight strength
- Capacity: 200 Litres
- 4mm Thick Acrylic
- Dimensions: L1700 x H410 x W750mm
- Leg set included
- Waste located on the back wall side of the bath
- Waste and tap sold separately
- 5 year guarantee
Close Coupled Toilet
- Total Height : 800mm
- Pan Height : 405mm
- Width : 375mm
- Short Projection Rimless Pan : 610mm
- Toilet Pan Outlet : Horizontal
- Quick release for ease of cleaning slimline toilet seat
- Toilet Type : Close Coupled Rimless
- Material Specification : Vitreous China
- Cistern Type : 3/6 Litre Dual Flush
- Shape : Round
- Weight : 33kg
- Includes : Pan, Cistern & Soft Close Seat
Basin
- Total Height : 825mm
- Width : 550mm
- Projection : 460mm
- Basin Bowl Height : 150mm
- Basin Bowl Width : 460mm
- Basin Bowl Projection : 285mm
- Outlet Connection Size : 70mm
- Wall to Waste Outlet : 204mm
- Wall to Tap Hole : 60mm
- Material Specification : Vitreous China
- Number of Tap Holes : 1, Central
- Basin Shape : Round
- Includes : Overflow
Basin Tap
- Height: 125mm
- Height Base to Spout: 65mm
- Projection: 80mm
- Finish: Chrome
- Manufactured: Solid Brass
- Cartridge: 30mm Ceramic Disc Cartridge
- Min Pressure & Flow Rate: 1 Bar (Flow Rate 6L per min)
- Max Pressure & Flow Rate: 3 Bar (Flow Rate 10.7L per min)
- Complete with push button basin waste
Bath Filler Tap
- Height :132mm
- Total Projection : 123mm
- Width : 222mm
- Tap Inlet Centres : 180mm
- 3/4 water inlet feeds
- Working pressure between 0.5 and 5.0 bar pressure
- High quality design and build
- Latest 1/4 turn ceramic disc technology
- Material : brass body
- Highly polished chrome finish
- Hot and cold indicators (H & C) on lever controls
- Deck mounted
- Easy installation
- Gravity systems require minimum of 5 metre drop between bottom of water tank and bath filler tap (suggest using a shower pump on gravity fed systems)
- Suitable for combi boilers and pressurised systems between 0.5 and 5.0 bar pressure
- Suitable for shower pumps
- Complete with installation instructions
- Guarantee : 5 Years
- Flow Rates :-
- 0.5 Bar 15.0 Litres per minute
- 1.0 Bar 22.4 Litres per minute
- 2.0 Bar 31.8 Litres per minute
- 3.0 Bar 33.5 Litres per minute

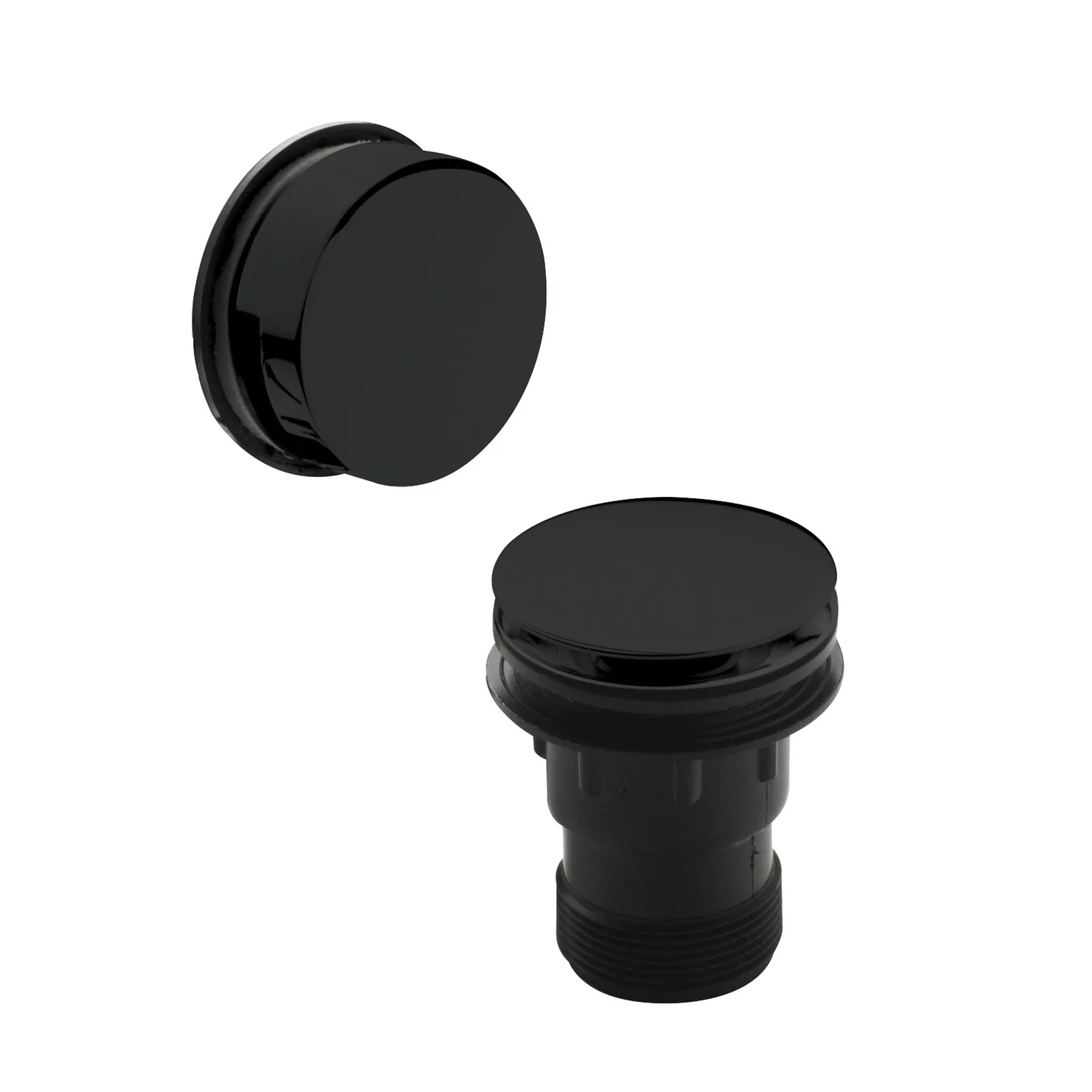

Bath Waste
- Finish : Matt Black
- Materials : Brass
- Hands-dry drainage
- Simple twist to open/close plug
- Suitable for Baths up to 10mm Thick
- Connection Size : 1 1/2"
- Waste Pipe Length : 740mm
- Waste Pipe Diameter : 33mm
- Product Diameter : 76mm
