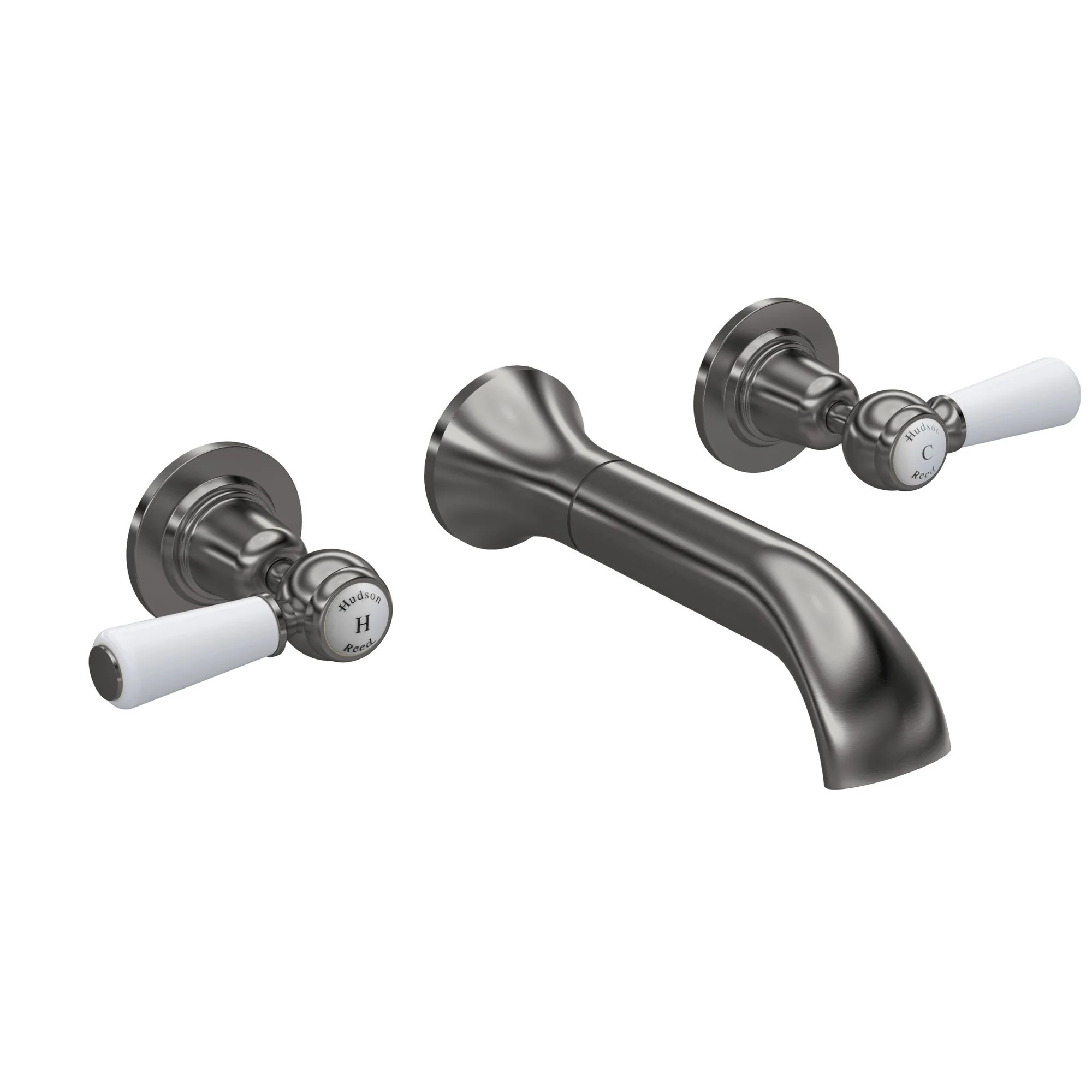

Hudson Reed White Topaz With Lever 3 Tap Hole Wall Mounted Basin Mixer - Brushed Pewter - BC717DL

Part of the Hudson Reed Topaz range, this Hudson Reed basin mixer delivers smooth water control with polished finishes that hold up to daily use and a traditional finish. Built with solid brass body for long-lasting, dependable use. A dependable choice for daily use across the bathroom.

• Traditional design
• Solid brass construction
• Brushed Pewter finish
• Wall-mounted basin mixer
• Single lever handle operation
• Requires 3 tap holes
• Waste sold separately
• Available in a range of finishes
• 3-year manufacturer's guarantee

Technical Specification

Height: 55 mm

Weight: 1.7 kg

Width:

Depth: 180 mm

Length:

Material: Brass

Waste: No

Mount Type: Wall Hung

Handle Type: Lever

Minimum Operating Pressure (Bar): 0.1

Valve/Cartridge Type: 1/4 Turn Ceramic Disc

WRAS Approved: No

TMV2 Approved: No

TMV3 Approved: No

Flow Rate at 0.1 Bar (L/min): 9.6

Flow Rate at 0.5 Bar (L/min): 20

Flow Rate at 1 Bar (L/min): 28

Flow Rate at 2 Bar (L/min): 39.5

Flow Rate at 3 Bar (L/min): 46.8

Tap Holes Required: 3

Tap Spout Projection: 180

Manufacture Guarantee: 3 Years

Guarantee Details: During installation extra care must be taken to avoid damaging the fittings. We provide Manufacture Guarantee against faulty workmanship or materials (excluding serviceable parts), providing they have been installed, cared for and used in accordance with our instructions.
