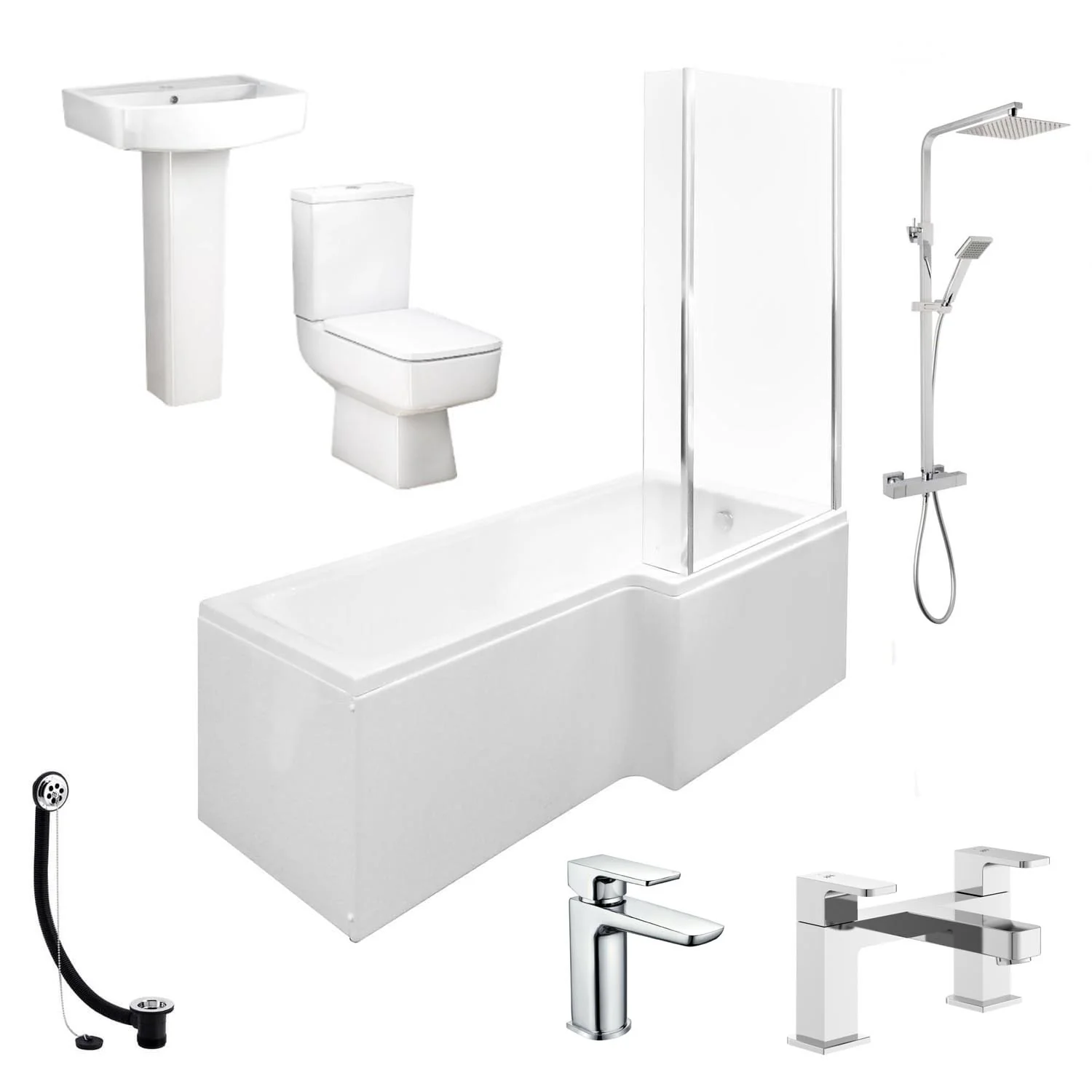

Crystalline 1700 L-Shaped Chrome Complete Shower Bathroom Suite

The beautiful complete Serene bathroom suite, make the most of your bathroom with our stylish and practical modern bathroom suites. Each item complements the other as they follow the same style throughout, featuring curved edges and smooth lines. It is the perfect way to keep a stunning style in your bathroom without compromising on functionality.

Suite includes :-
Bath
Hinged Bath Screen
Basin and pedestal
Close-coupled toilet and seat
Shower
Basin mono mixer and waste
Bath Filler
Bath waste plug and chain

Toilet Technical Specification

• Toilet Total Height : 785mm
• Toilet Width : 350mm
• Toilet Projection : 610mm
• Toilet Pan Height : 405mm
• Material : Vitreous China
• Finish : White
• Cistern Full Flush : 6 Litres
• Cistern Half Flush : 3 Litres
• Total Weight : 43.9kg
• Includes : Toilet Pan, Toilet Cistern & Toilet Seat
• Style : Modern

Basin Technical Specification

• Total Height : 820mm
• Width : 520mm
• Projection : 420mm
• Basin Bowl Height : 155mm
• Wall to Waste Outlet : 180mm
• Wall to Tap Hole : 65mm
• Material Specification : Vitreous China
• Number of Tap Holes : 1, Central
• Basin Shape : Square
• Weight 26.1kg
• Includes : Overflow

Bath Technical Specification

• Bath Length : 1700mm
• Bath Width : 700 / 850mm
• Bath Height : 560mm
• Bath Thickness : 4mm
• Bath Material : Acrylic
• Colour : White

Bath Screen Technical Specification

• Height : 1400mm
• Width : 805mm
• Adjustment Range - 800-810mm
• Glass Thickness : 6mm
• Material : Glass

• Frame Finish : Polished Chrome

• Style : Modern
• Handed : Reversible
• Hinged : Yes



Basin Tap Technical Specification

• Height : 129.5mm
• Tap Spout Height : 95mm
• Tap Spout Reach : 102mm
• Width : 46mm

• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Single Lever

• Mounting : Deck Mounted
• Style : Modern
• Features : Ceramic Disc Technology
• Minimum Pressure : 0.2 Bar
• Includes push button waste



Bath Tap Technical Specification

• Height : 133mm
• Projection : 120mm
• Tap Base to Spout : 67mm
• Shape : Square
• Material Specification : Brass
• Finish : Chrome
• Operation : Dual Lever 1/4 Turn Ceramic Disc
• Weight : 1.9kg
• Tap Holes : 2
• Pipe Centres : 180mm
• Inlet Connection Size : 3/4"
• Mounting : Deck Mounted
• Style : Modern
• Suitable for: Combination Boilers, Pressurised Systems, Pumped Systems & Gravity Fed Systems
• Minimum Pressure : Subject to a minimum of 0.2 Bar
• Excludes : Waste Kit

• Flow Rate - 0.1 Bar	7.2 l/min
  Flow Rate - 0.5 Bar	23 l/min
  Flow Rate - 1.0 Bar	32.6 l/min
  Flow Rate - 2.0 Bar	47.4 l/min
  Flow Rate - 3.0 Bar	58.3 l/min



Shower Technical Specification

• Total Height : 690-1045mm
• Total Width : 263mm
• Total Projection : 344mm
• Material Specification : Brass
• Finish : Chrome
• Features : Ceramic Disc Technology
• Includes : Fixtures & fittings
• Featuring a 200mm Square Overhead Shower
• Length of Shower Head Arm : 344mm
• Inlet Feeds : 15mm
• Pipe Inlet Centres : 150mm
• Adjustable height
• Includes 1.5 metre shower hose
• Easy-clean rubber jets on both the shower head and shower handset
• Working pressure between 0.1 and 5.0 Bar
• Easy installation
• Incorporating diverter to control flow between shower head & handset



Waste Technical Specification

• Includes : Overflow
• Suitable for baths up to 5mm thick
• Connection Size : 1 1/2"
• Waste Pipe Length : 500mm
• Waste Pipe Diameter : 23mm
• Product Diameter : 70mm
